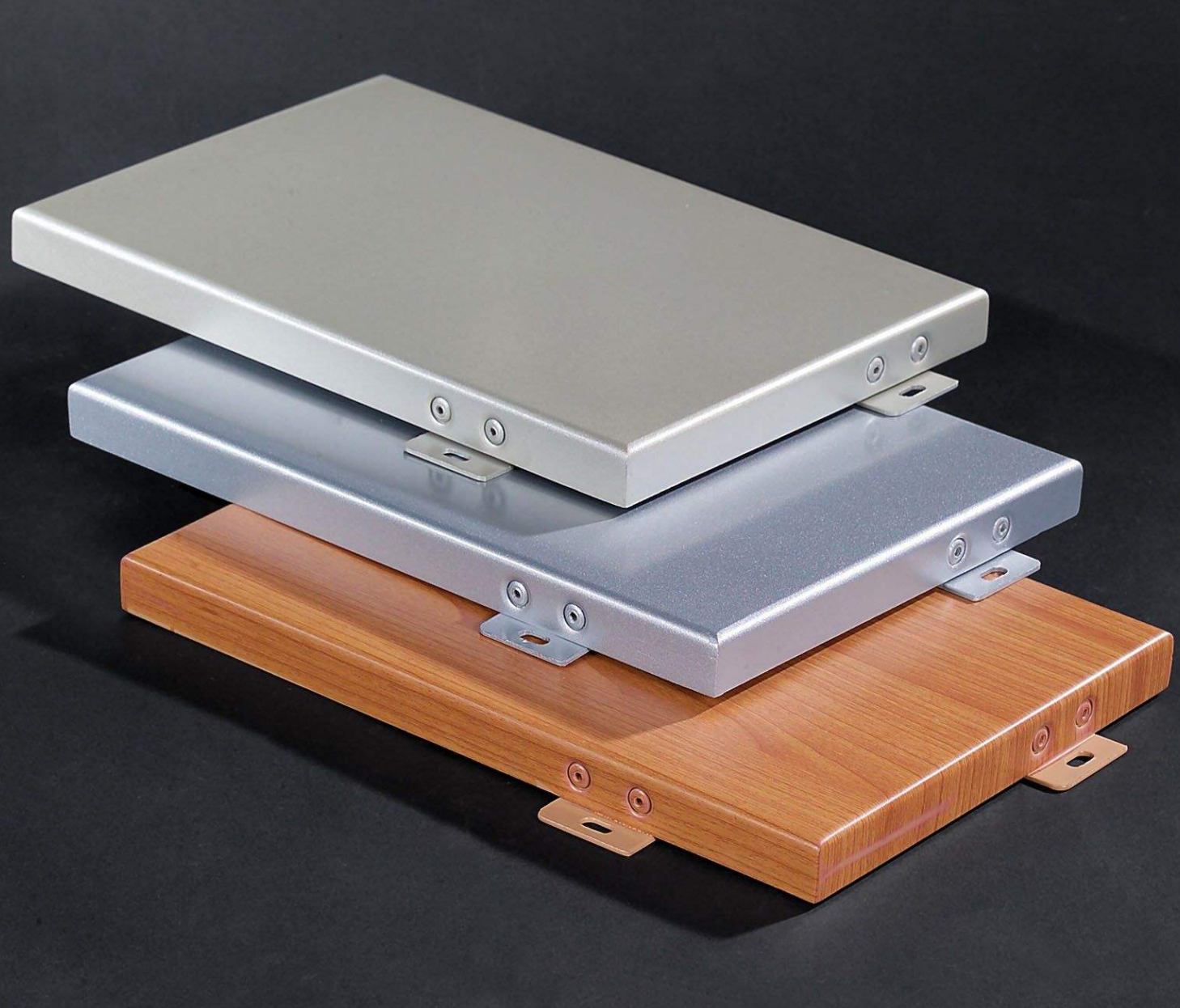

The aluminum veneer mainly uses 1100H24、3003H24 monolayer aluminum alloy plate as substrate. It consists of face plate, stiffener and hangers. Face plate and hangers are connected by solid or hollow rivets. It is installed a special stiffener at the back of the face plate to make sure the smoothness during long-term use. Stiffener and the back of face plate are connected by stainless steel and pads and nuts to be as a stable whole. Therefore, It strengthens its toughness and stiffness.

Specification:

Stone grain (stone grain painting, thermal transfer printing)

Aluminium alloy	1100, 3003, 5005, 5052
Panel thickness	2mm, 2.5mm, 3mm, up to 10mm
Dimension	Width: up to 2000mm
	Length: up to 6000mm
Surface treatment	PVDF 2/3/4 Layer coating (AkzoNobel/PPG)
	Powder coating (Powder/fluorocarbon powder)
	Wooden grain (wood grain paper, thermal transfer printing, wood grain painting)
Colour	Pure colour, Metallic colour, RAL colour, Pantone colour
Shape	Flat, Cambered, double curved, triple curved, spherical, customized
Warranty	15 - 25 years
MOQ	100 square meters
Lead time	10 - 25 days
Port of loading	Ningbo/Shanghai port
